Hejian Ruida Petroleum Material Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Geological PDC Bit |
| Model Number : | PDC drill bit |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Delivery Time : | 15-30 work days |
| Payment Terms : | T/T |
| Supply Ability : | 30 pcs per week |

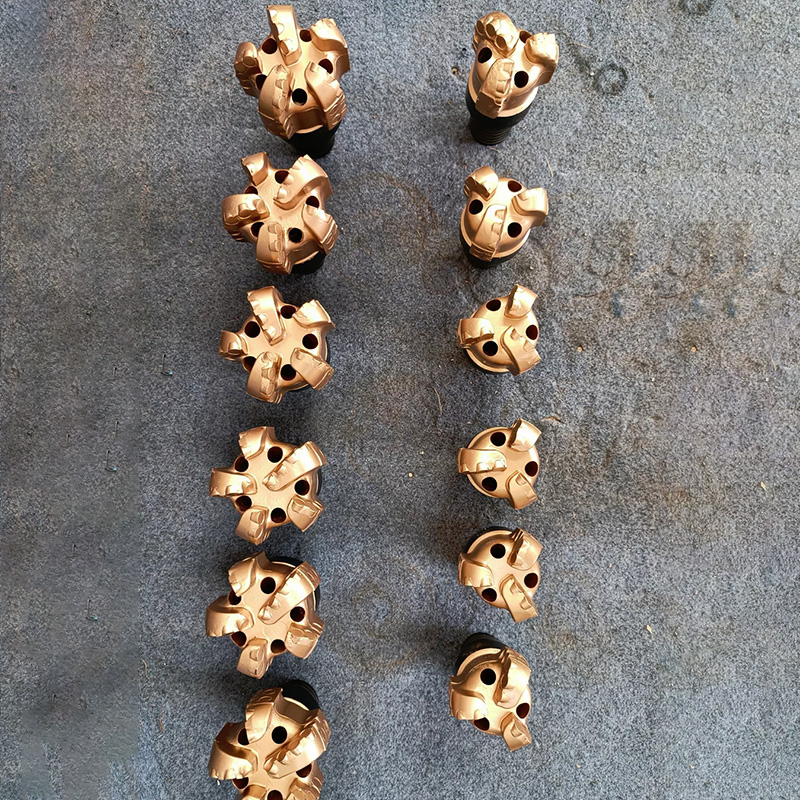

When it comes to PDC drill bits, these tools are crafted by carefully welding cutting teeth created from polycrystalline diamond (PDC) onto the drill steel body. The polycrystalline diamond itself is a remarkable composite material that is manufactured through a single sintering process of artificial diamond micro powder, a binder, and a hard alloy matrix at high temperatures and under ultra-high pressure conditions. This unique material effectively combines the exceptional wear resistance of diamond with the impressive impact resistance of hard alloy. As a result, PDC drill bits are able to successfully navigate through various challenging operational environments.
1. Diamond Composite: The diamond composite of PDC drill bits boasts remarkably high hardness and wear resistance. This feature allows the drill bits to maintain sharpness for extended periods when encountering tough rocks, ultimately reducing the need for frequent replacements.
2. Design Structure: PDC drill bits possess a unique design structure characterized by small diameter, low lateral friction, and excellent lubrication performance. These qualities work together to effectively minimize friction during drilling operations, thereby enhancing drilling speed. Whether it's rapid drilling through soft rock or breaking through hard rock formations, PDC drill bits consistently deliver outstanding cutting performance.
3. High-Temperature Stability: PDC drill bits exhibit remarkable stability in high-temperature environments, resisting deformation and failure due to thermal expansion.
4. Versatile Applications: PDC drill bits are versatile tools suitable for a wide range of formations and drilling operations, including conventional drilling, horizontal wells, directional wells, and complex wellbore drilling.
| Design & Customize | 98mm To 3593.7mm |
| Material | Alloy Steel |
| Name | PDC Bits & Oil Drill Bits |
| Formation | Soft To Medium Soft |
| Packing | Wooden Box |
| Color | As Your Requirement |
| Applications OF PDC Drilling Bits | Soft To Medium Shale Sequences With Low Abrasiveness |
| Body Material | Steel Body |
| Origin | China |
| Product Name | Geological PDC Bits |
Geological exploration requires equipment that is suitable for core drilling, hydrogeological investigation, dealing with complex geological conditions, and improving exploration efficiency. Our tools are specifically designed to meet these needs.
In oil and gas drilling, our tools are the first choice for complex wellbore operations such as conventional drilling, horizontal wells, directional wells, etc. They are designed to maintain efficient drilling and extend service life.
Product Packaging:
The PDC Drill Bits are carefully packaged in a sturdy box to ensure their safety during transportation. Each drill bit is wrapped in protective material to prevent any damage during handling and shipping.
Shipping:
Our company offers fast and reliable shipping services for the PDC Drill Bits product. Orders are processed promptly and shipped securely to your desired location. We use trusted shipping carriers to ensure that your order arrives safely and on time.
Q: What is the brand name of the PDC drill bits?
A: The brand name is Geological PDC Bit.
Q: Where is the PDC drill bit manufactured?
A: The PDC drill bit is manufactured in Hebei, China.
Q: What certification does the PDC drill bit have?
A: The PDC drill bit is certified with ISO9001.
Q: What is the minimum order quantity for the PDC drill bit?
A: The minimum order quantity is 1 piece.
Q: What are the payment terms for purchasing the PDC drill bit?
A: The payment terms are T/T.
|
|
